FL-222D Overflow Filling Machines (Servo)

FL-222D Overflow Filling Machines (Servo)

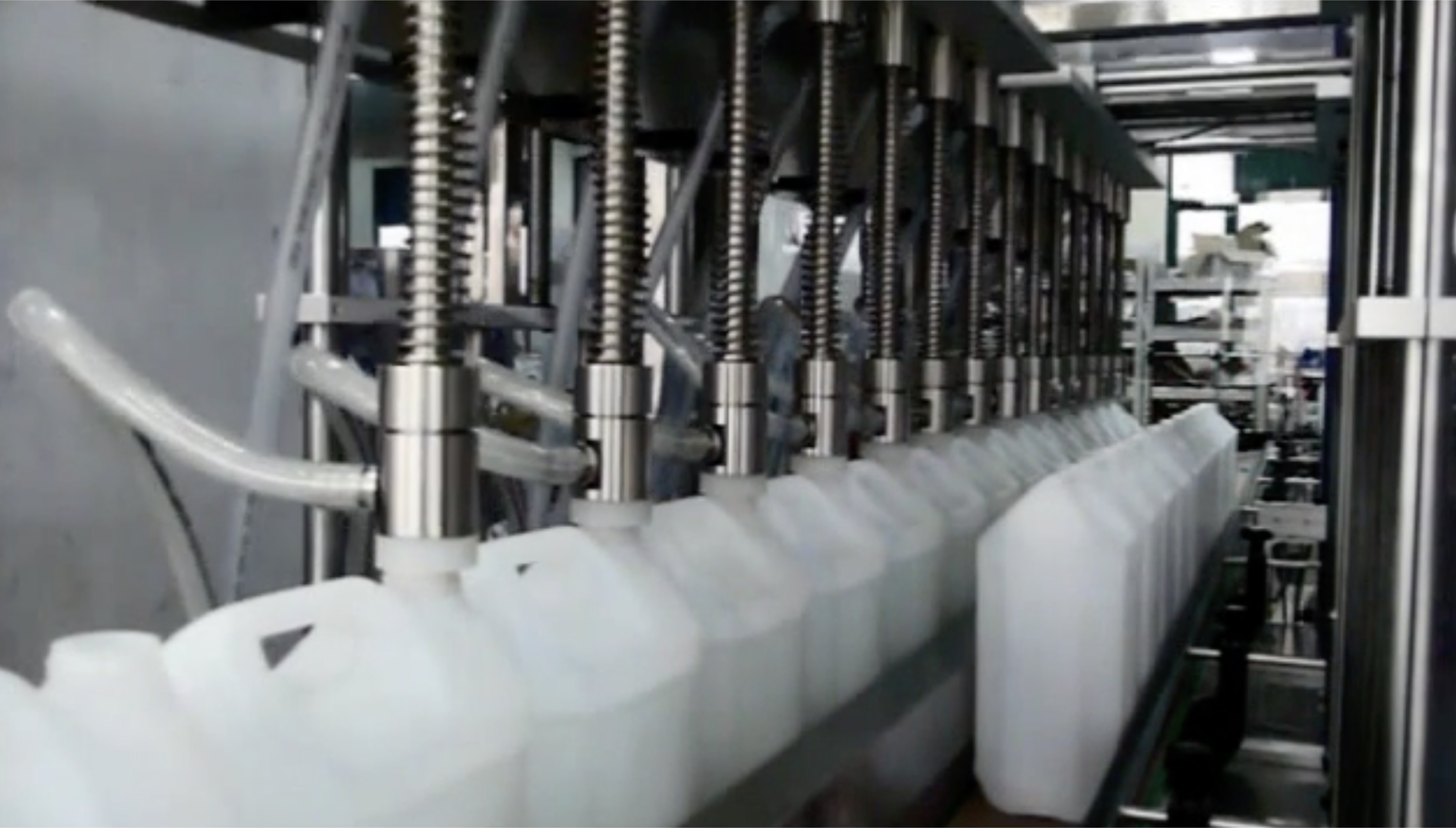

Our FL-222D servo system overflow filling machines are best suited for liquids of low to medium viscosity, and it is also ideal to fill very foamy product at high speed.

Overflow Filling Machine (Servo System)

This machine is designed with a double lane conveyor to boost the production speed with a “no waiting time” system. Servo system for machine height and width adjustment, changeover can be simply done on the HMI.

The FL-222D’s double lane filling stations enable the machine to achieve cost-effective production and high performance levels. User-friendly design ensures operation is smooth and maintenance levels are low. Built-in flexibility allows customers to choose from 4, 6, 8, 10, 12, 14, 16 nozzles to be applied on the machine.

The FL-24D Overflow Filling Machines is suitable for shampoos, foamy chemicals, cleansers, sauces, syrups, light gels and other similar liquids.

Simple to Use

The FL-24D Overflow Filling Machine's highly efficient design enables easy operation and quick change-over for different capping specifications and requirements

Built to Last

The FL-222D Overflow Filling Machine's solid steady frame is made from durable 304 stainless steel and anodised aluminium.

Exceptional Support

With all our high quality equipment, customers from around the UK will receive support from our expert team of skilled engineers based in Bradford, West Yorkshire.

Panasonic servo system


This sturdy conveyor has adjustable conveyor guide rails to accommodate the varying product sizes.


With the Volume Set feature, all pistons can be controlled by the Servo System. Up to eight or more bottles can be filled at a time, and the volume for each can be changed with one touch on the touch screen controls.


The machine is fully enclosed and well suited for simple and quick changeovers, with built in mobility castors that enable easy movement from one production area to the next.

Technical Specifications

Filling Capacity Options
250-5000 ml
Filling Nozzles
Supply Voltage
220/380 VAC, 50/60HZ, 3 Phase
Power Consumption
8 KW
Air Pressure
4-6 kg
(L) 7000mm x (W) 1200mm x (H) 2000mm
Net Weight

FL-222D Pricing: Get a quote

At Advanced Dynamics, we understand that every business has unique needs, which is why our pricing for the FL-222D Overflow Filling Machines (Servo) is based on various factors.
To receive a quote tailored to your specific needs, please fill out our contact form, and one of our representatives will be in touch with you shortly.
