Our PL-11 labelling head

Our PL-11 labelling head

Our PL-11 labelling head is the ultimate in versatility and flexibility and is the ideal labelling solution to integrate into existing production lines.

The ultimate in versatility and integration

Our PL-11 is the ideal labelling system to integrate into existing production lines. The compact labelling head offers speeds of up to 40 metres per minute and is available with 150mm or 200mm applicator width.

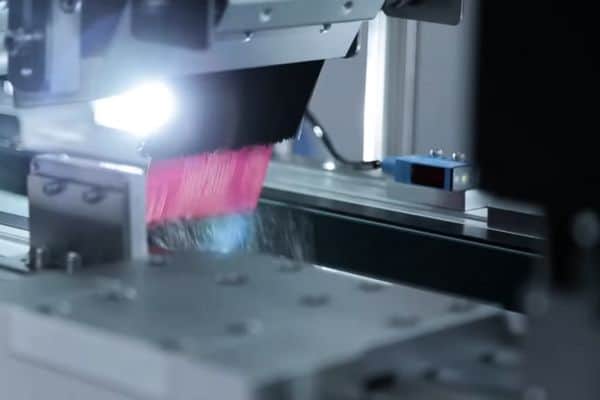

The Our PL-11 labelling head machine provides accurate and secure labelling of passing flat faced products, reducing the need for manual involvement. It has a basic mechanical construction that allows it to perform at high speeds with stability.

Horizontal or vertically mounted

Labelling delay function

Labelling quantity count function

Batch counter with variable preset and auto-stop

Hand wheel mechanism for fine or coarse adjustments

Memory slots for up to 30 preset parameters

Built-in troubleshooting

Easily integrated into existing production line

Stainless steel and anodised aluminium construction

Full spares and service support from our Bradford based team

Technical Specifications

Supply Voltage
240V, 50/60 Hz, 1-phase
Power Consumption
Dispensing Speed
Max. 40 m/min
Applicator Height
150 mm / 200 mm
Label Size
Max. 150/200 mm x 300 mm
Mounting bracket
Horizontal or vertical
Spool Diameter
76 mm
Stepper motor drive

PL-11 Pricing: Get a quote

At Advanced Dynamics, we understand that every business has unique needs, which is why our pricing for our PL-11 labelling head is based on various factors.

To receive a quote tailored to your specific needs, please fill out our contact form, and one of our representatives will be in touch with you shortly.
