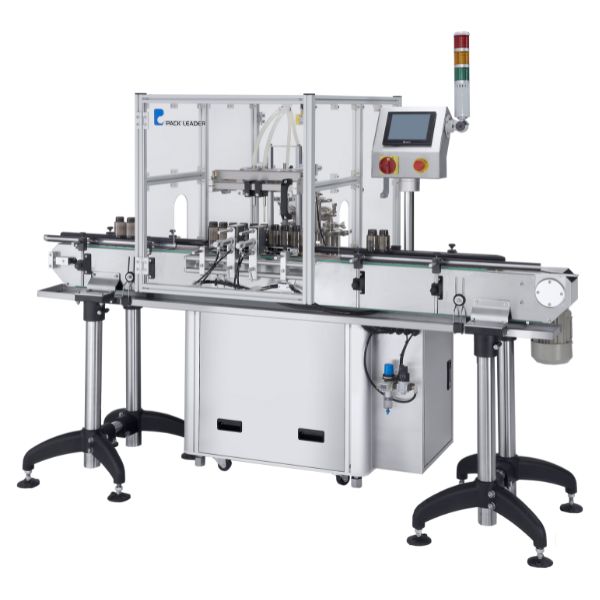

FL-12 & FL-14 Compact Automatic Filling Machines

The FL-12 & FL-14 compact automatic filling machines are our most affordable fully automated filling systems.

For smooth and consistent results

Our FL-12 & FL-14 Twin and Quad head compact automatic filling machines utilise our servo-driven volumetric pump system to ensure high accuracy filling. Features include integrated infeed and outfeed conveyor, product gating system and bottle stabilising clamps to ensure smooth and consistent results.

Easy-to-use touchscreen interfaces allow for quick and easy changes to filling parameters, enabling them to easily handle changing production schedules and different products. The FL range’s compact design makes it ideal for use where space is at a premium, but its sturdy construction ensures durability and longevity.

2m x 100mm Delrin slat band conveyor

Servo drive-motors

AC brushless drive-motor with system-linked variable speed control

Full-length product guide-rails

Bottle gating system

1000ml max. dosage per filling cycle (subject to cylinder capacity)

System can draw liquid from any external source (subject to pipe length)

Filling accuracy ±0.5%

Output speed capabilities: 15–60 bottles/min (subject to filling capacity)

Stainless steel and anodised aluminium construction

Full spares and service support from our Bradford based team

Technical Specifications

Model
FL-12 / FL-14
Filling Capacity Options
150 cc piston/500 cc piston/1000 cc piston
Filling Nozzles
2/4
Supply Voltage
1-phase, 380/220 V, 50/60 Hz
Power Consumption
2 kW
Air Pressure
5-7 kg
Dimensions
2000 mm (L) x 1000 mm (W) x 1840 mm (H)
Net Weight
250 kg
