FC-120 Automatic E-Liquid Filling and Capping System

FC-120 Automatic E-Liquid Filling and Capping System

The FC-120 high speed, automatic filling and capping system is specially designed for automated end-to-end E-Liquid packaging.

Automate E-Liquid Filling

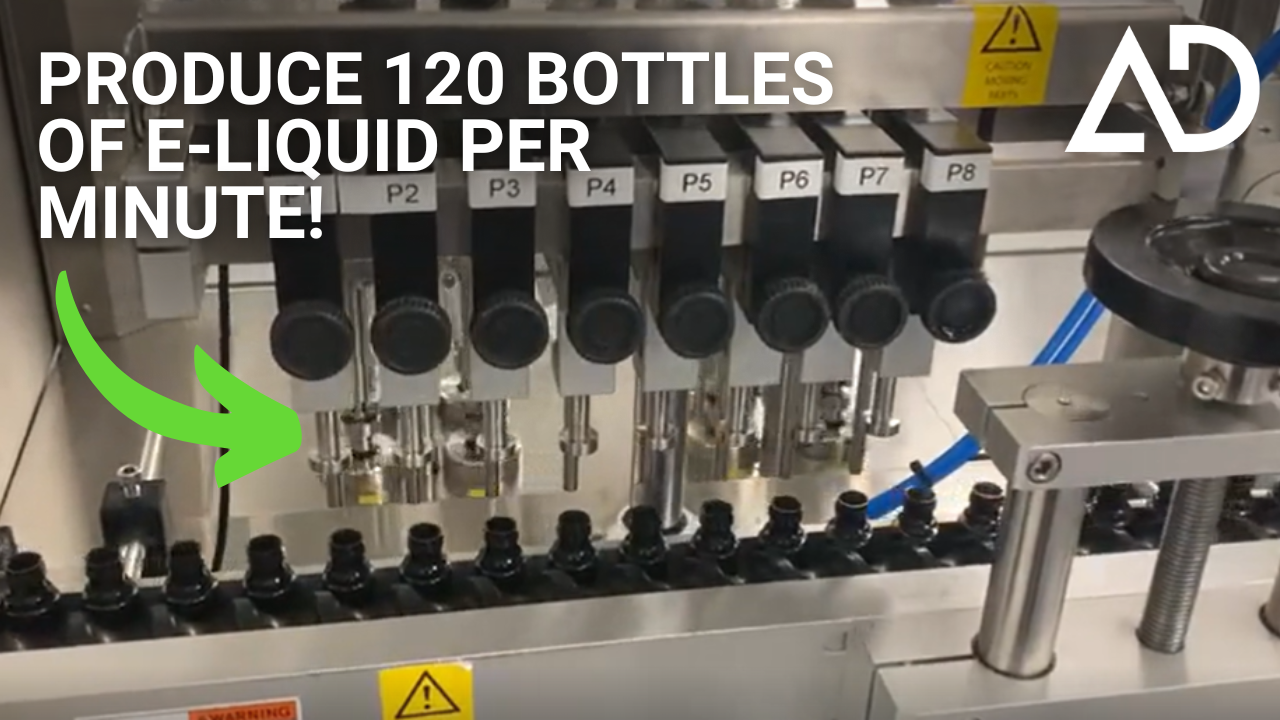

This fully automated E-liquid filling system takes bulk liquid, bottles, and caps and creates 7200 shelf-ready products an hour! Using 8 volumetric pistons with continuous motion filling heads and 8 rotary capping heads, the FC-120 can produce up to 120 bottles of E-Liquid per minute!

From the initial bottle unscrambling, the conveyor system to move those bottles into place, the automated filling, the unscrambling and sorting of the caps, and then the application of those caps, this machine can fully automate your E-Liquid packaging process.

The FC-120 is suitable for 10ml-150ml bottles, and so is perfect for E-Liquid filling and packaging!

Adjustable filling speed

Accurate to ±0.5% (with low-to-high viscous liquids)

Integrated digital Panasonic PLC with touchscreen HMI for easy operation

Panasonic servo system

Electronically adjustable capping torque setting

Conveyor system driven by Siemens motor

Drip-prevention system

Memory slots for storing individual filling parameters

Full spares and service support from our Bradford based team

Technical Specifications

Filling Capacity Options
Capping heads
8x rotary capping heads
Liquid Contact Part Material Option
Stainless steel 304/Stainless steel 316
Supply Voltage
220/380 V, 50-60 Hz, 3-phase
Power Consumption
1.8 kW
Air Pressure
6 bar
4500 mm (L) x 964 mm (W) x 1770 mm (H)
Net Weight
1250 kg

FC-120 Pricing: Get a quote

At Advanced Dynamics, we understand that every business has unique needs, which is why our pricing for the FC-120 Automatic E-Liquid Filling and Capping System is based on various factors.

To receive a quote tailored to your specific needs, please fill out our contact form, and one of our representatives will be in touch with you shortly.
