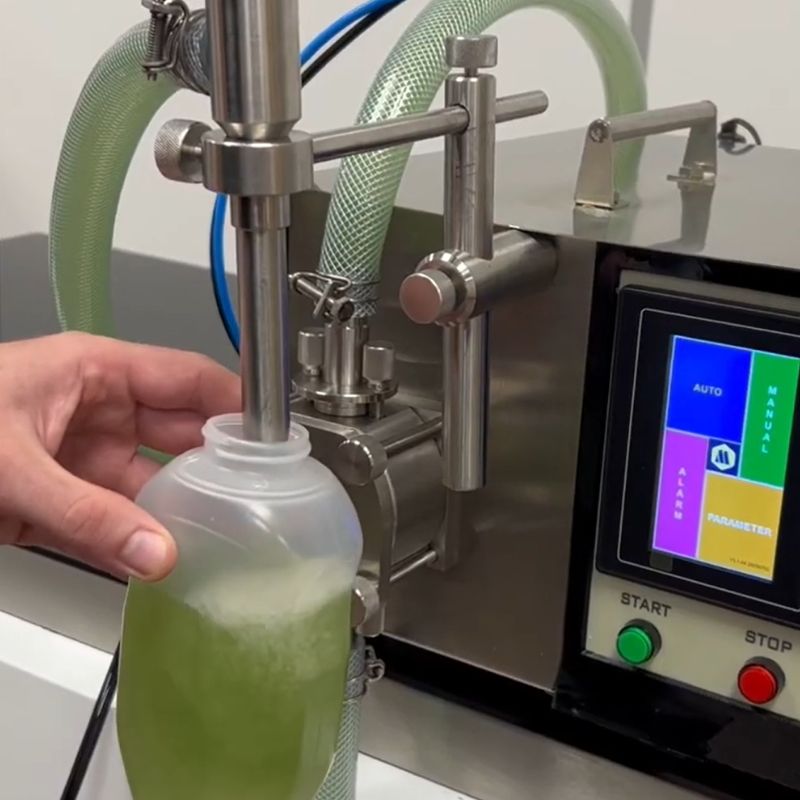

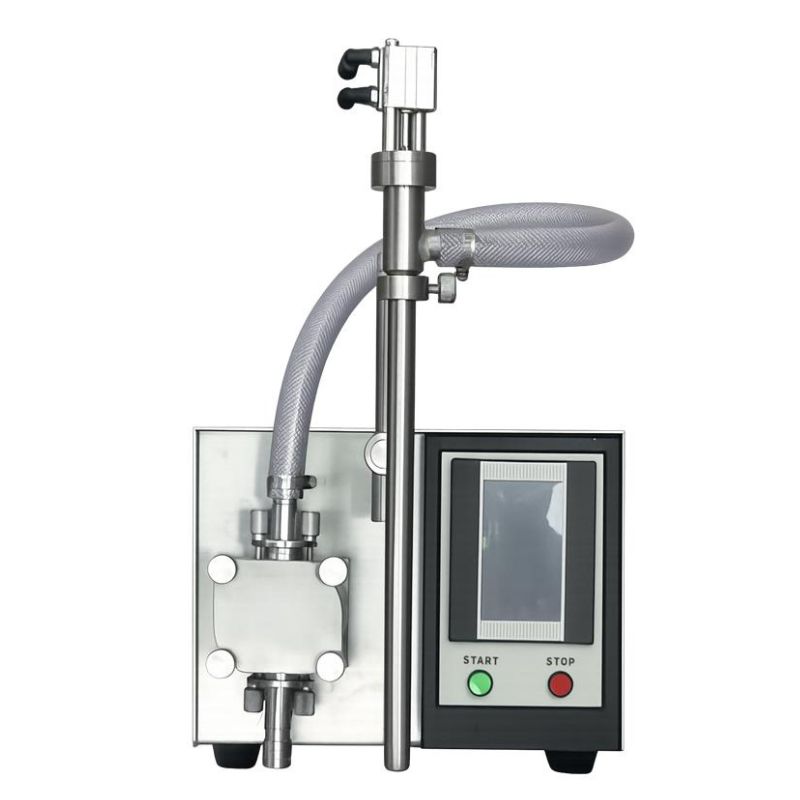

FL-60 Desktop Filling Machine
Compact liquid filling with the FL-60 desktop filler
The FL-60’s gear pump filling system and Delta PLC touchscreen control are built for reliable, repeatable filling — with a fill accuracy of 0.5% to 1% — giving you consistent results across free-flowing liquids, oils and other viscous products without reworking your setup between batches.
The FL-60 is available with a standard filling mouth (ø4, ø6 or ø10) or a pneumatic filling mouth (ø16 or ø19), so it can be set up to suit different liquids and container types without switching machines. The standard mouth is typically suited to water and general liquids, while the pneumatic option is typically suited to oils and other more viscous products.
Its compact dimensions (310mm x 480mm x 310mm) and 18kg weight mean it can be positioned within limited floor space, and it runs from a standard single-phase 220V supply with 5–7kg air pressure for straightforward installation alongside existing equipment.
Fill Range
Fill Accuracy
Gear Pump Filling
Delta PLC Control
Mouth Options
Compact & Light
Technical Specifications
FL-60 Pricing: Get a Quote
At Advanced Dynamics, we understand that every business has unique needs, which is why our pricing for the FL-60 Desktop Filling Machine is based on various factors.
Want to know if the FL-60 fits your product and production plans? Tell us about your liquid type, containers and batch requirements and we will provide a quote tailored to your specific needs. Please fill out our contact form, and one of our representatives will be in touch with you shortly.
5-Year warranty is also available – giving you five years of parts & labour cover, planned preventative maintenance, and priority access to our dedicated engineering team.
