ELF-50 Desktop Wraparound Labelling Machine

ELF-50 Desktop Wraparound Labelling Machine

Our ELF-50 desktop wraparound labelling machine is a highly accurate and robust labelling solution.

Our best selling, compact, desktop wraparound labelling system

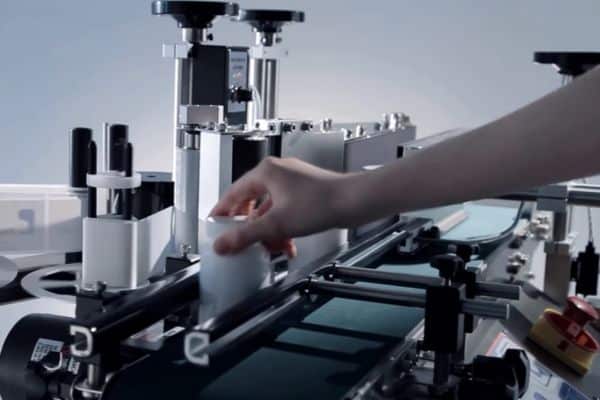

Our ELF-50 desktop wraparound labelling machine is a highly accurate and robust labelling solution. It can stand alone or be integrated into a line for automatic or semi-automatic labelling of a variety of container sizes, cartons and bottle shapes.

This vertical wrap around labeller can provide accurate and secure labelling of round bottles, reducing the need for manual involvement. It has a basic mechanical construction that allows it to perform at consistently, with stability.

These machines are designed to offer a cost effective way of moving from manual hand labelling, to a more automated solution. Products must first be placed on the conveyor by hand. The machine then automatically applies a label at up to 60 applications per minute (subject to hand loading).

These machines can also be equipped with batch and date coding systems, along with in-feed and out-feed, feeding and collation tables and are the perfect machine for applications such as beer bottle labelling, can labelling and many more.

5-Year Warranty Available from £75 per month!

Our all-new Advanced Partnership Programme offers five years parts & labour cover, planned preventative maintenance, priority access to our dedicated engineering team and a single point of contact for direct communication when you need it most.

All of this is available for our ELF-50 labelling machine, from £75 per month!

AD Letters Tom Managing Director - Advanced Dynamics

Suitable for round bottles

Labelling delay function

Labelling quantity count function

Batch counter with variable preset and auto-stop

Hand wheel mechanism for fine or coarse adjustments

Memory slots for up to 10 preset parameters

Up to 60 label applications per minute (subject to hand loading)

Compact design

Stainless steel and anodised aluminium construction

Full spares and service support from our Bradford based team

Technical Specifications

Supply Voltage
240V, 50/60 Hz
Power Consumption
Dispensing Speed
Max. 16 m/min
Conveyor Speed
Max. 16 m/min (customising optional)
Applicator Height
120 mm
Label Size
Max. 120 mm x 300 mm
Conveyor Width
160 mm
Spool Diameter
76 mm
1100 mm (L) x 870 mm (W) x 600mm (H)

ELF-50 Pricing: Get a quote

At Advanced Dynamics, we understand that every business has unique needs, which is why our pricing for the ELF-50 Desktop Wraparound Labelling Machine is based on various factors.

To receive a quote tailored to your specific needs, please fill out our contact form, and one of our representatives will be in touch with you shortly.
