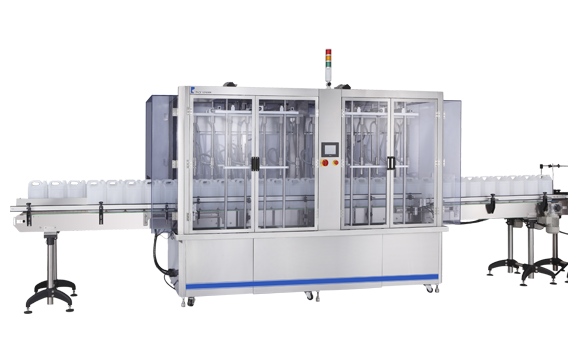

FL-222D Overflow Filling Machine (Servo)

Filling
Our FL-222D servo system overflow filling machine is best suited for liquids of low to medium viscosity, and it is also ideal to fill very foamy product at high speed.
Talk to an Expert
FL-222D Overflow Filling Machine (Servo)

Overflow Filling Machine (Servo System)

This machine is designed with a double lane conveyor to boost the production speed with a “no waiting time” system. Servo system for machine height and width adjustment, changeover can be simply done on the HMI.

The FL-222D’s double lane filling stations enable the machine to achieve cost-effective production and high performance levels. User-friendly design ensures operation is smooth and maintenance levels are low. Built-in flexibility allows customers to choose from 4, 6, 8, 10, 12, 14, 16 nozzles to be applied on the machine.

Suitable for shampoos, foamy chemicals, cleansers, sauces, syrups, light gels and other similar liquids.

Talk to an Expert

Simple to Use

The FL-222D's highly efficient design enables easy operation and quick change-over for different capping specifications and requirements

Built to Last

The FL-222D’s solid steady frame is made from durable 304 stainless steel and anodised aluminium.

Exceptional Support

With all our high quality equipment, customers from around the UK will receive support from our expert team of skilled engineers based in Bradford, West Yorkshire.

Panasonic servo system

Flexible

This sturdy conveyor has adjustable conveyor guide rails to accommodate the varying product sizes.

Efficient

With the Volume Set feature, all pistons can be controlled by the Servo System. Up to eight or more bottles can be filled at a time, and the volume for each can be changed with one touch on the touch screen controls.

Practical

The machine is fully enclosed and well suited for simple and quick changeovers, with built in mobility castors that enable easy movement from one production area to the next.

Technical Specifications

Filling Capacity Options
250-5000 ml
Filling Nozzles
4-16
Supply Voltage
220/380 VAC, 50/60HZ, 3 Phase
Power Consumption
8 KW
Air Pressure
4-6 kg
Dimensions
(L) 7000mm x (W) 1200mm x (H) 2000mm
Net Weight
1200kg
